Mazda CX-9 Owners Manual: Rear Wide View

Mazda CX-9 Owners Manual / When Driving / i-ACTIVSENSE / 360º View Monitor / Rear Wide View

Use the rear wide view to assist in checking the safety of the surrounding area when accelerating from a stop, parking, or stopping the vehicle.

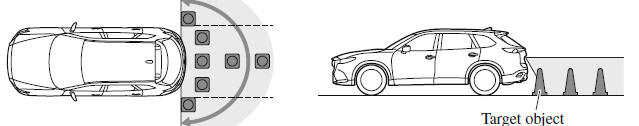

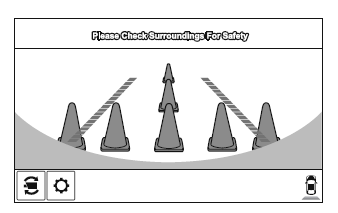

Range of displayed screen image

(Screen display)

(Actual condition)

i-ACTIVSENSE

Viewing the screen

Display/Icon

Content

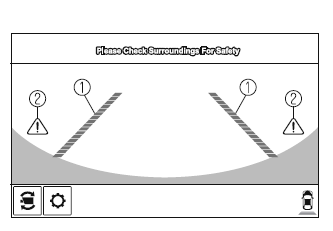

Extended vehicle width lines and distance guide lines (red/blue)

These guide lines indicate the approximate width of the vehicle and distance to a point measured from the rear of the vehicle (from the end of the bumper).

The red lines indicate the points up to about 0.5 m from the rear end of the bumper.
The blue lines indicate the points from about 0.5 m (20 in) and up to 2 m (79 in) from the rear end of the bumper.

Blind Spot Monitoring (BSM) warning lights

Indicates when the Rear Cross Traffic Alert (RCTA) has operated.

For details, refer to Rear Cross Traffic Alert (RCTA).

NOTE

The parking sensor obstruction detection indication does not display. Switch the screen display to the top view/rear view display if the parking sensor warning sound is activated.
The rear wide view screen displays the image at the rear of the vehicle at a wide angle and corrects the image to help detect approaching obstructions from the side. Therefore, it differs from the actual view

Margin of Error Between Road Surface on Screen and Actual Road Surface

There might be some margin of error between the road surface appearing on the screen and the actual road surface. A margin of error in the perceived distance could lead to an accident, therefore be aware of the following conditions which can more easily produce errors in the perceived distance.

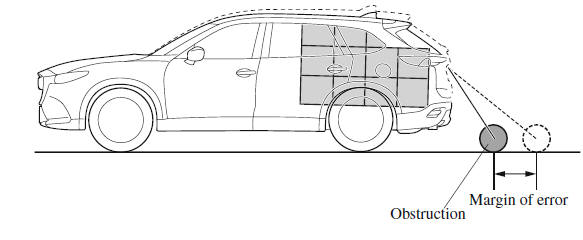

The vehicle tilts due to weight of passengers and cargo.

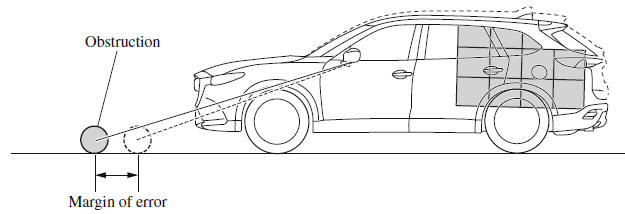

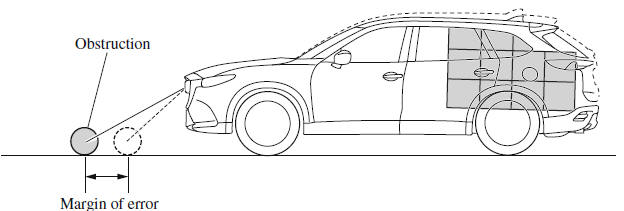

If the vehicle is tilted, obstructions picked up by a camera can appear farther or closer than the actual distance from the vehicle.

Front camera

i-ACTIVSENSE

Side camera

i-ACTIVSENSE

Rear camera

i-ACTIVSENSE

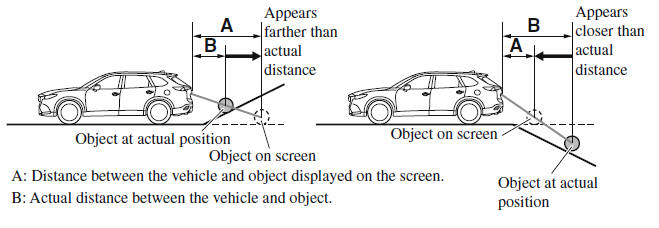

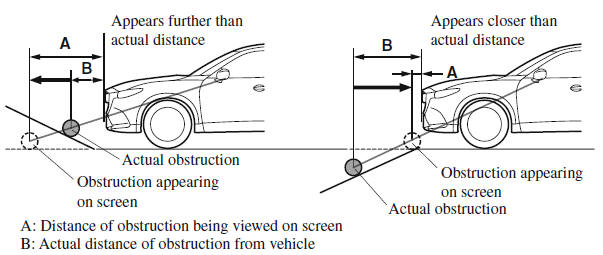

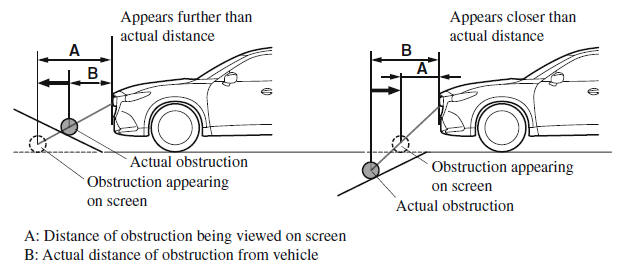

There is a steep up or down grade in the road at the front or rear of the vehicle

If there is a steep up or down grade in the road at the front or rear of the vehicle, obstructions picked up by the camera can appear farther or closer than the actual distance from the vehicle.

Front camera

i-ACTIVSENSE

Side camera

i-ACTIVSENSE

Rear camera

i-ACTIVSENSE

NOTE If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer than the actual distance from the vehicle.

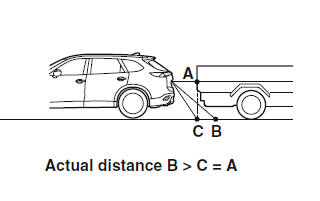

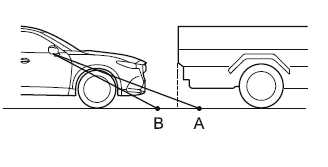

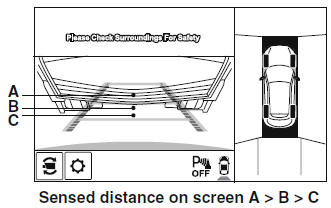

Three-dimensional object at vehicle front or rear

Because the vehicle front end guide lines (side camera) or the distance guide lines (rear camera) are displayed based on a flat surface, the distance to the three-dimensional object displayed on the screen is different from the actual distance.

Side camera

(Screen display)

i-ACTIVSENSE

(Actual condition)

Rear camera

(Screen display)

i-ACTIVSENSE

(Actual condition)

i-ACTIVSENSE

System Problem Indication

Center display indication	Cause	Action to be taken
"No image signal reception" is displayed	The control unit might be damaged.	Have your vehicle inspected by an Authorized Mazda Dealer.
Screen is pitch-black and blank	The camera might be damaged.	Have your vehicle inspected by an Authorized Mazda Dealer.
